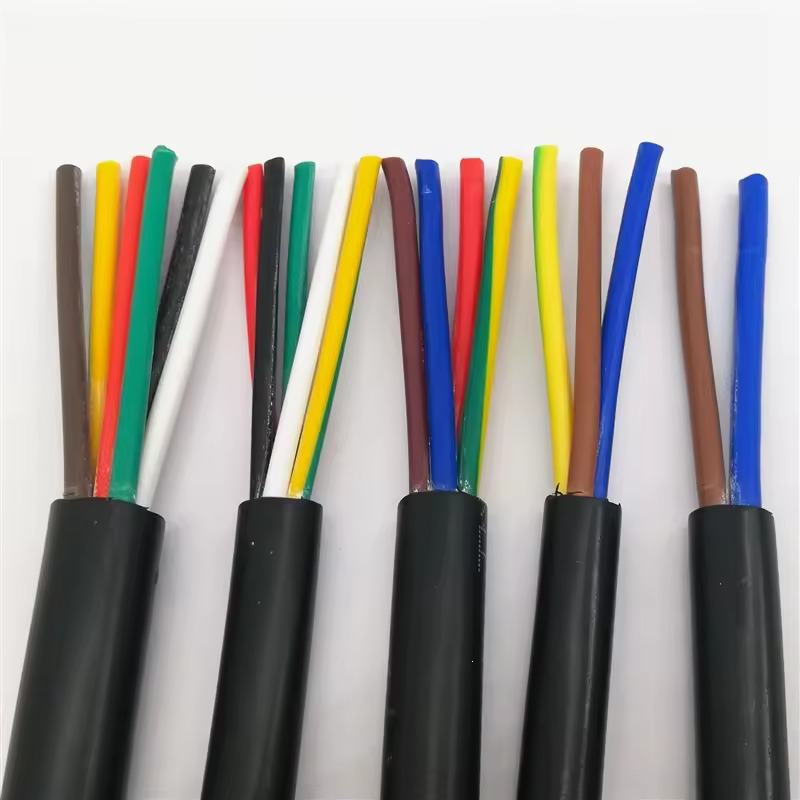

Multi Wire Cables

Name: Multi Wire Cables
Brand: MODVAK CABLES INDIA PRIVATE LIMITED
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Roll

Get a Price/Quote

MOQ : 500 Rolls

Multi Wire Cables Specification

Insulation
Heat and Moisture Resistant PVC

Armored Material
Optional, Steel Wire or Tape (in armored variants)

Core Number
2, 3, 4, or as specified

Core Material
Copper

Rated Temperature
-10C to +70C

Dielectiric Strength
2 kV for 1 minute

Install Type
Indoor and Outdoor

Conductor Shape
Round

Number of Conductor
2 to 24 as required

Usage & Applications
Electrical Panels, Cabling, Industrial Automation, Wiring Harness

Operating Temperature
-15C to +70C

Diameter
Varies as per specification

Impedance
Varies by application and construction

Cable Type
Multicore Flexible Cable

Weight
Varies as per cable size and length

Conductor Type
Stranded

Features
Flame Retardant, Flexible, High Conductivity, Durable

Tensile Strength
High (depends on size and construction)

Product Type
Multi Wire Cable

Length
100 m/roll (standard) or customizable

Voltage
Up to 1100 V

Insulation Material
PVC

Application
Domestic & Industrial wiring, Panel wiring, Appliances

Conductor Material
Electrolytic Grade Copper

Jacket Material
PVC

Storage Temperature
-30C to +70C

Connector Color
Black, Red, Yellow, Blue, Green, White (varies by type)

Shield Material
Optional, Aluminum Mylar (in shielded variants)

Jacket Color
Multiple (as per standard color code)

Dimension (L*W*H)
Based on cable type and number of cores

Material
Copper + PVC

Color
Assorted (as per IS / IEC color standards)

Size
0.5 sq mm to 16 sq mm & above

Smoke Emission
Low Smoke options available

Halogen Free Option
Available on request

Surface Finish
Smooth PVC Outer Sheath

Bending Radius
Minimum 6 x cable diameter

Current Carrying Capacity
As per IS standard rating for respective sizes

Rated Frequency
50/60 Hz

RoHS Compliance
Yes

Nominal Thickness
As per IS/IEC standards

UV Resistance
Yes (On request)

Ozone Resistance
Available in special variants

Packaging
Coil, Drum or as required

Fire Resistance
Yes (FR and FRLS options available)

About Multi Wire Cables

Multi wire cables are electrical cables that contain multiple insulated conductors bundled together within a single outer sheath. These cables are designed for safe and organized transmission of electrical power, control signals, and communication between different electrical and electronic equipment.

They are widely used in industrial machinery, control panels, automation systems, power distribution, telecom equipment, and domestic electrical applications. Multi wire cables are manufactured using high-quality copper or aluminium conductors with durable PVC, XLPE, or rubber insulation to ensure excellent conductivity, flexibility, heat resistance, and long service life.

These cables are available in various core sizes, voltage ratings, and shielding options according to application requirements. Multi wire cables provide easy installation, reduced wiring complexity, enhanced safety, and reliable performance in demanding environments.

Unmatched Safety and Fire Protection

Our multi wire cables are available with FR and FRLS features, significantly enhancing their fire resistance compared to standard cables. Low smoke emission and flame retardant properties ensure increased safety during potential electrical fires, making them ideal for applications requiring strict adherence to international safety standards. Specialized variants can also provide halogen-free, UV, and ozone resistance for particularly demanding environments.

Versatile Applications and Enhanced Performance

These cables are designed for versatility, serving a broad range of indoor and outdoor uses-from panel wiring and industrial automation to domestic grounding and harness systems. The use of electrolytic grade copper conductors ensures high conductivity and durability, while the option for armored and shielded versions provides extra protection where required by the installation environment.

Customizable Specifications and Compliance

Available in various sizes, lengths, and core configurations, our multi wire cables can be tailored to specific project requirements. They comply with RoHS, IS, and IEC standards and feature color coding as per industry norms for hassle-free identification during installation, ensuring both regulatory compliance and operational convenience.

FAQ's of Multi Wire Cables:

Q: How do FR and FRLS multi wire cables improve safety in wiring installations?

A: FR (Flame Retardant) and FRLS (Flame Retardant Low Smoke) cables are designed to resist ignition and hinder flame propagation. They also emit minimal smoke in the event of a fire, reducing the risks of toxicity and visibility issues, which is crucial for indoor and densely populated areas.

Q: What benefits do halogen-free and low smoke options provide in these cables?

A: Halogen-free cables do not emit toxic fumes or corrosive gases when exposed to fire, while low smoke options reduce the amount of smoke generated. Both features enhance safety for people and sensitive electronic equipment, especially in enclosed or critical environments.

Q: Where can multi wire fire-resistant cables be used effectively?

A: These cables are suitable for a variety of locations, including domestic and industrial wiring, electrical panels, wiring harnesses, and both indoor and outdoor installations. Their flexibility and durable construction make them ideal for challenging environments requiring reliable, long-lasting solutions.

Q: What is the current carrying capacity and rated voltage for these cables?

A: The current carrying capacity of these cables aligns with IS standard ratings for their respective sizes, ensuring safety and performance. They are rated for voltages up to 1100V, making them suitable for a wide array of electrical applications.

Q: How are the cables typically packaged and what lengths are available?

A: Cables are usually supplied in 100-meter coils by default, but lengths and packaging can be customized to meet project requirements. Options include coils, drums, or specific packaging as required.

Q: What options are available for cable color and identification?

A: Cables are offered in assorted colors following IS/IEC color codes for easy circuit identification. Connector and jacket colors include black, red, blue, yellow, green, white, and other standard variants as specified for the intended application.

Q: When is it advisable to choose armored or shielded multi wire cables?

A: Armored cables, featuring steel wire or tape, are recommended for environments requiring extra mechanical protection against physical stresses. Shielded versions with aluminum mylar are ideal for minimizing electromagnetic interference in sensitive electronic or communication installations.
